The CM2 product family
CM2 Acquisition hardware
![STR Image](str.jpg)
The CM2 Sonar Transceiver unitSpecifications

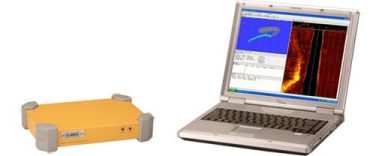

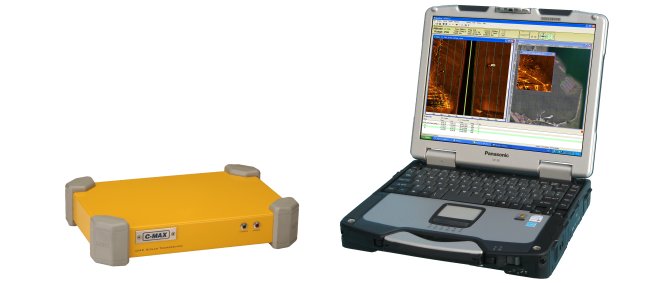

The Sonar Transceiver (STR) interfaces the towfish to an external data acquisition computer via a USB link. It makes the sonar appear to the computer as a USB peripheral and also powers the towfish.
The STR integrates seamlessly with C-MAX's MaxView acquisition software or can also be used with acquisition software from other leading manufacturers. Please see the Software section of the site or contact us for more information.
![Rack mount tray image](racktray.jpg)
Optional rack mount tray
An optional 2U rack mounting tray is available, allowing the user to install the STR in a 19" rack. Provision is made for permanent wiring of DC power via DIN rail terminals, and a front panel switch is included. Cut-outs in the front panel allow easy viewing of the power and trigger LEDs during operation.
![C-Shell image](c-shell1.jpg)

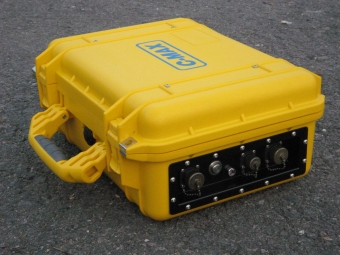

The C-Shell waterproof enclosureSpecifications
The C-Shell provides a rugged, waterproof enclosure for the STR. This enclosure is ideal for open boat use and is available with an integrated GPS.
Reliable, rugged connectors, mounted in a recessed panel provide easy connection of DC power, the CM2 tow cable, and the USB link to the acquisition computer. An integrated USB hub provides a secure location to install hardware dongles, used by most acquisition software packages.
